Chapter 2 Front Panel Operations RIGOL

User’s Guide for DM3068

2-63

To Set the Trigger Parameters

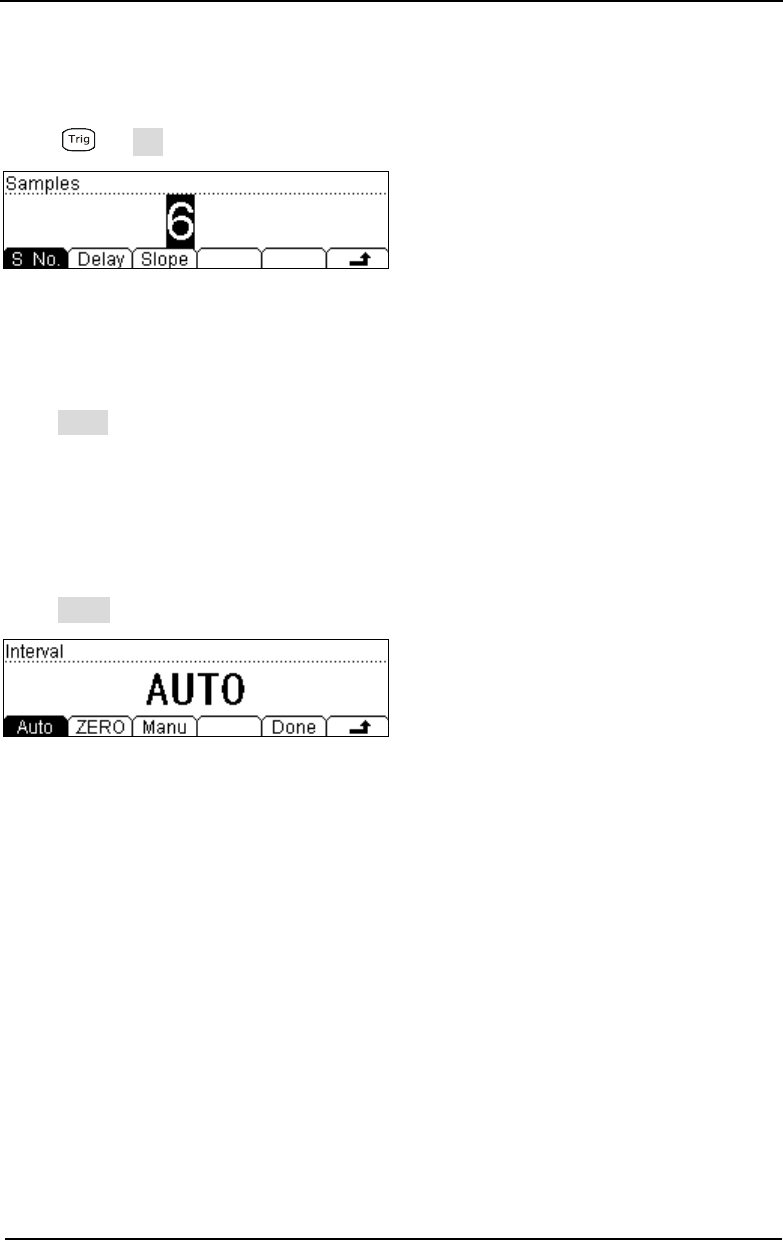

Press  Set to enter the following interface.

S No.

The multimeter takes the specified number of readings each time a trigger signal is

received.

Press S No. and enter a desired number within 1 and 50 000 using the direction

keys. The default is 1.

Delay:

User can set the delay time between the trigger signal and the every sample

(reading).

Press Delay to enter the following interface.

 Auto: the delay time in this mode is decided by a combination of the used

measurement function, range, integration time and AC filter and other factors.

 ZERO: the delay time in this mode is 0 s.

 Manu: the delay time in this mode can be set to any value within 0 s and

3600 s.

Slope:

This menu allows you to select an edge type for the pulse from the [Ext Trig]

connector at the rear panel when using external (or level) trigger. The multimeter

will trigger on the specified type of edge.
